Explosion proof tracked vehicle

Uses and features

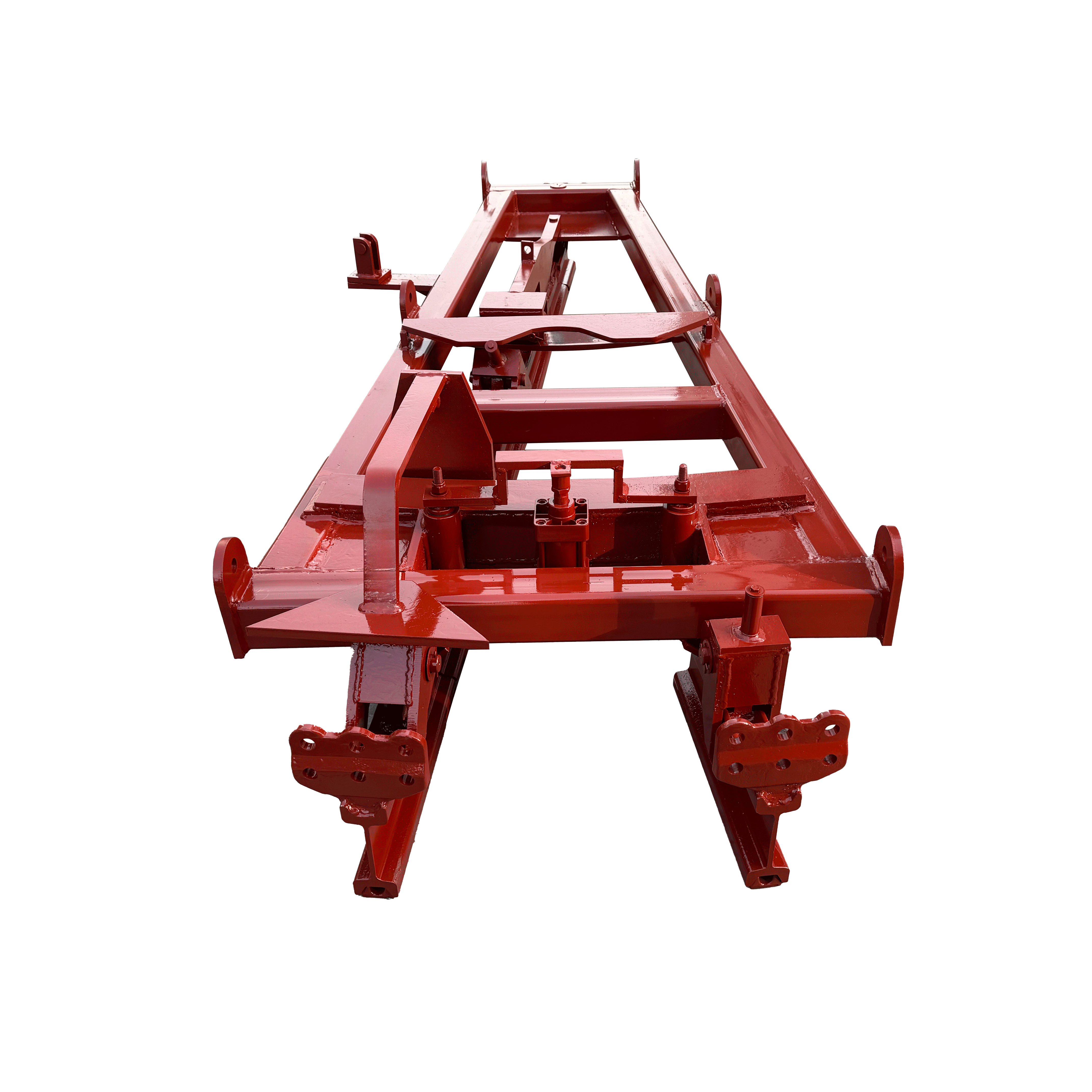

This vehicle is sutable for transporting in the underground chute of coal mines. it has the characteristics of narrow body, low height and strongdriving force. The vehicle is powered by an explosion-proof diesel engine, adopts an integral rigid welded frame, and impoted low-speed high.torque motor, with good low-speed running performance and high transmission eiciency. it has hydrauic mechanical transmission, two-way cabiul hvdrawlic operatin. and skid steering. The driving brake is back pressure brake. and the parking brake is wet brake t has the characteristicsof good passability,two-way driving, fast speed, strong climbing abilily, fexible maneuverabity, strong adaptabiity, safety and eficiency, and lowtansportation cost. t soves the diicuties in transporing small eouioment in coal mines for a long time. reduces the labor intensiy of workersand greatly improves production efficiency.

Overall Structure

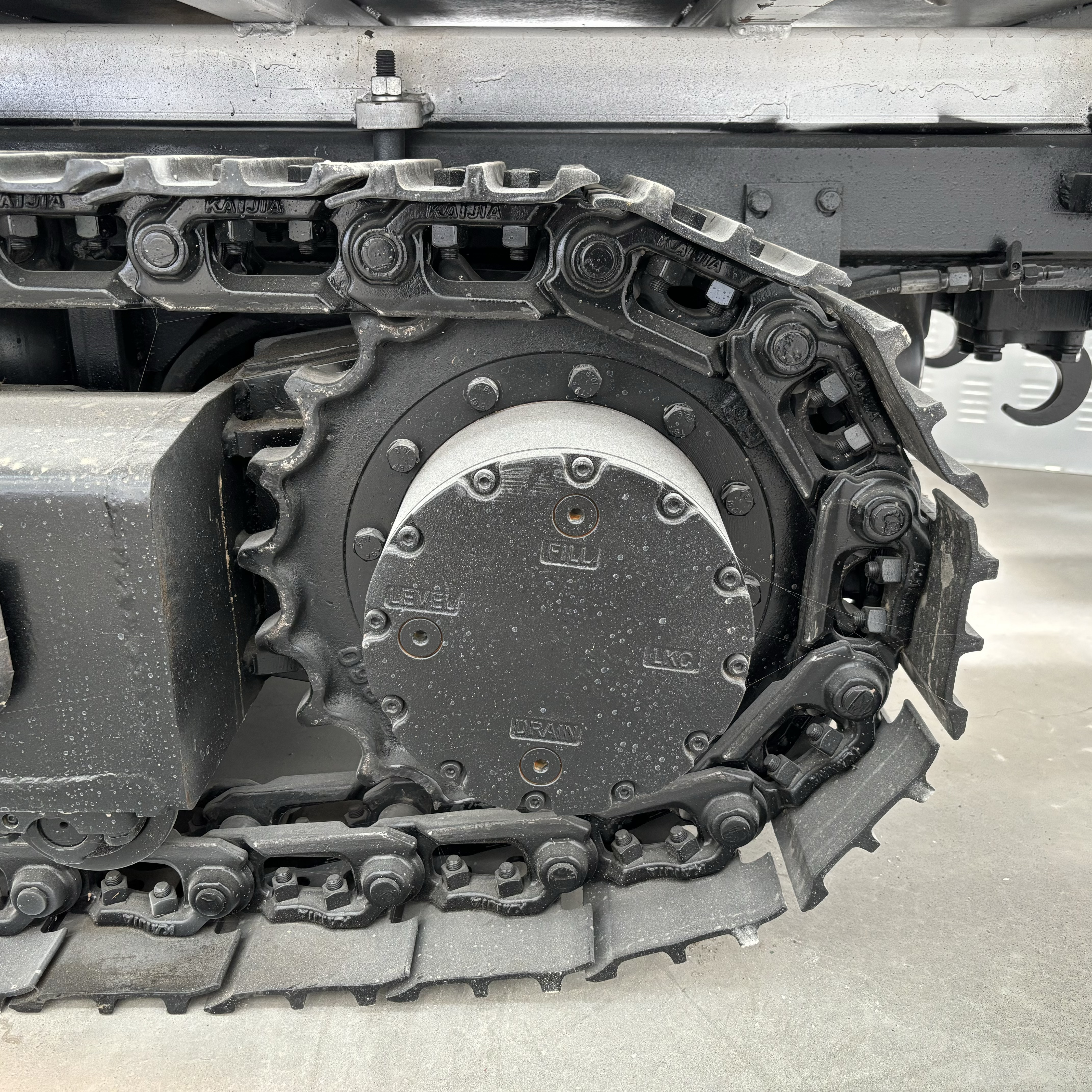

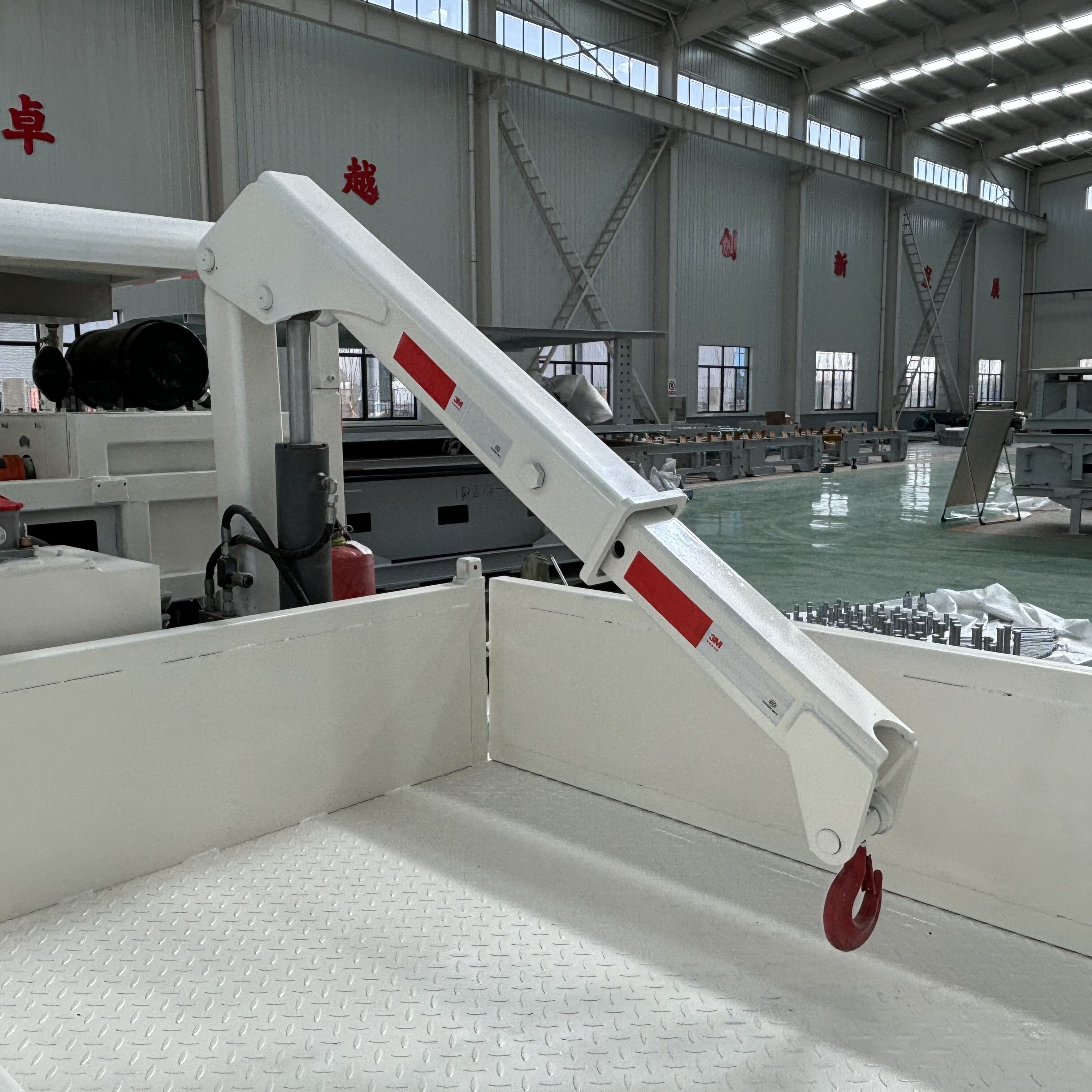

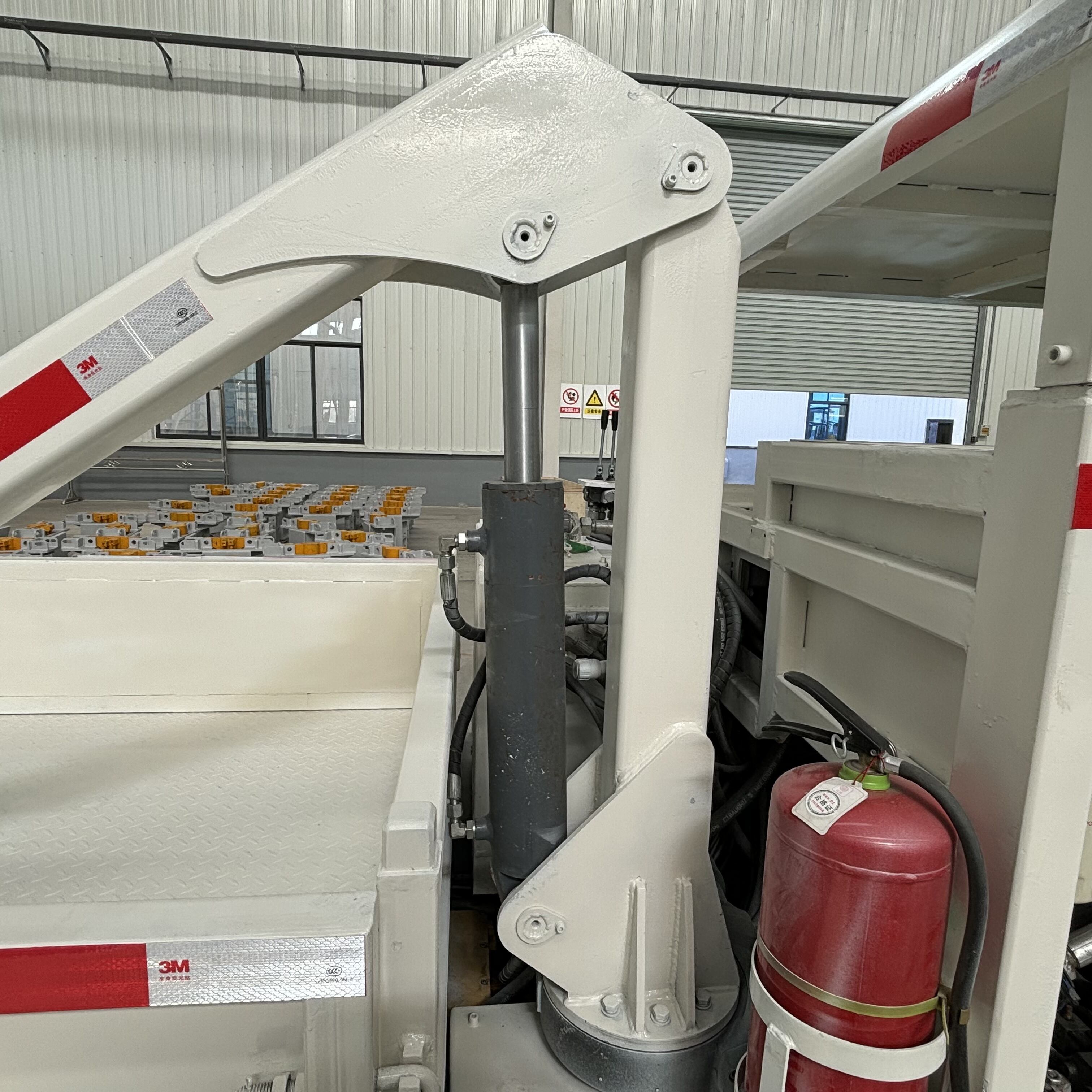

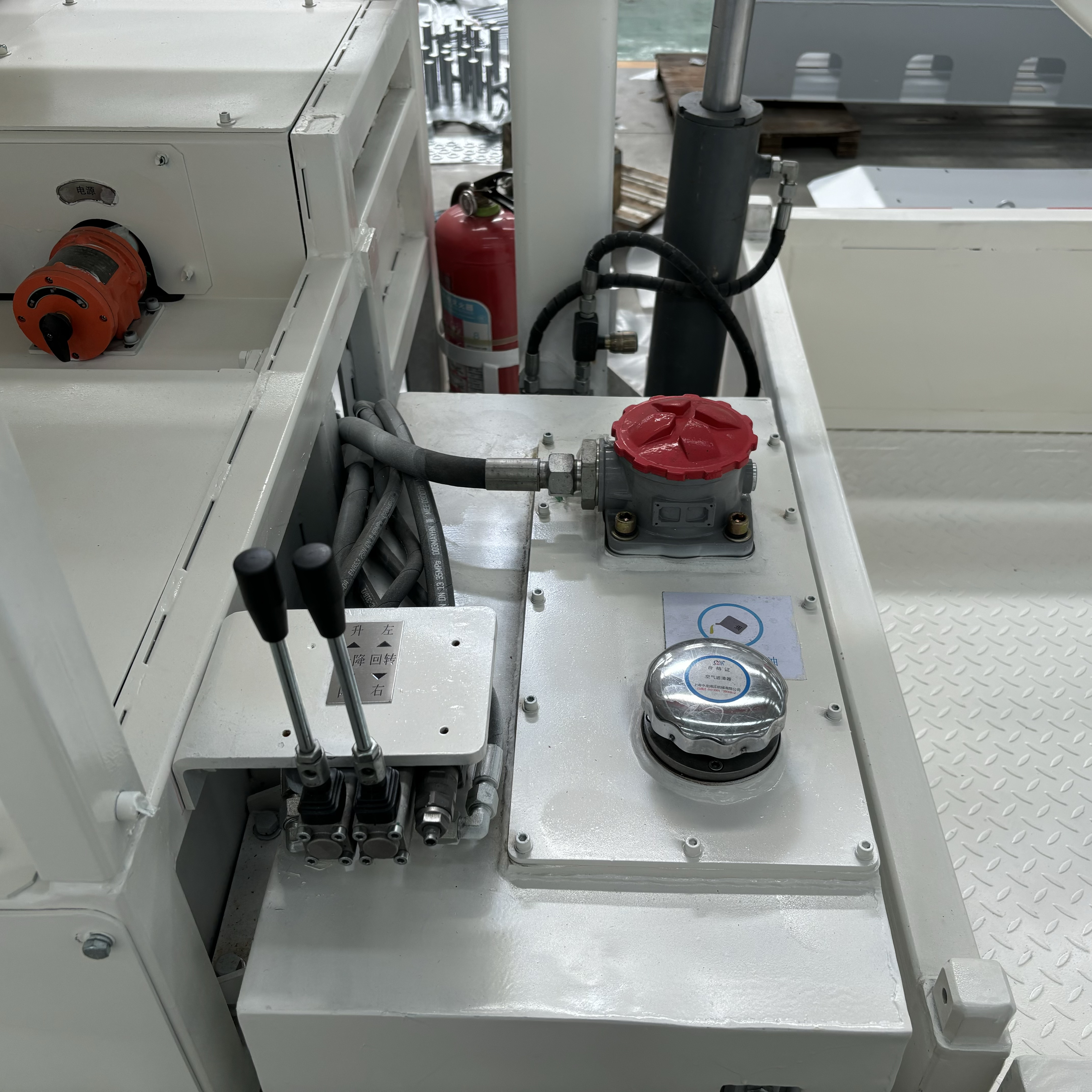

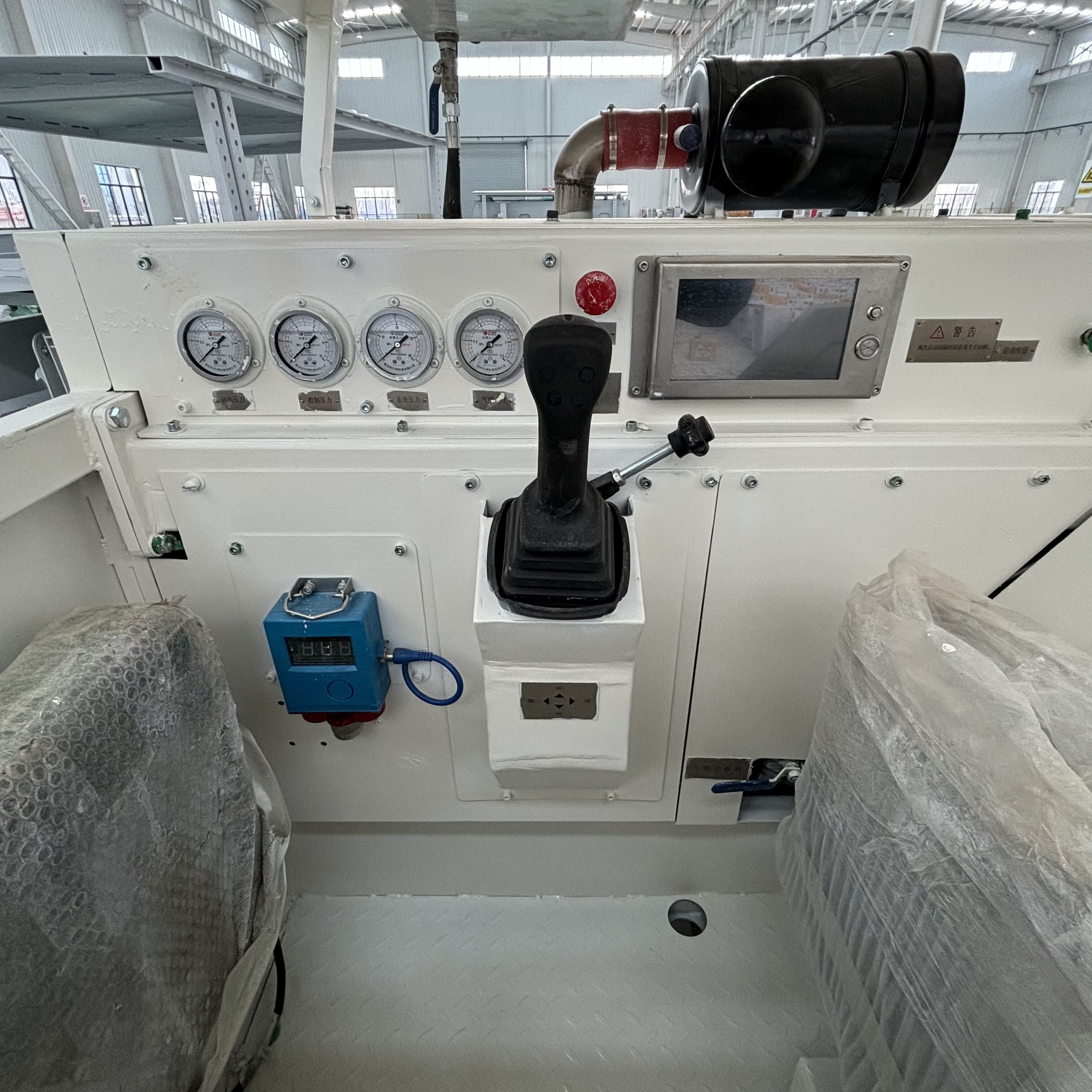

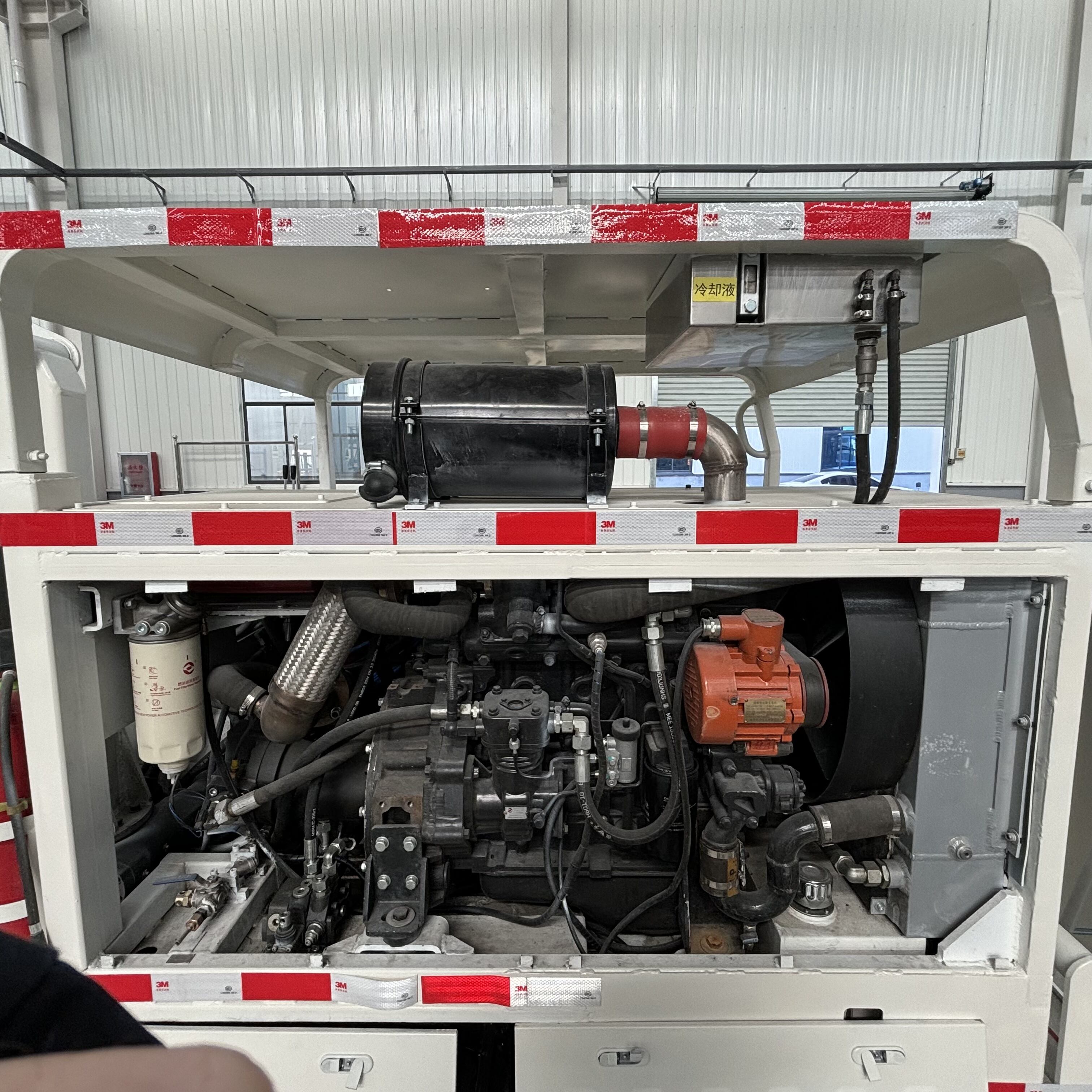

The overall structure of the explosion-proof diesel engine crawler transporter is shown in the figure, which consists of a cab assembly, a travelingassembly, a cariage, a diesel tank, a diesel engine assembly, a boom assembly and a hydraulic ol tank, etc. The whole machine adopts amodular structure, each component is relatively independent. the structure is simplifed, and it is easy to assemble and maintain.
