| Technical parameters of WJ-0.6 Internal combustion scraper |
| 序号 |
Project |
Parameter |
| 1 |

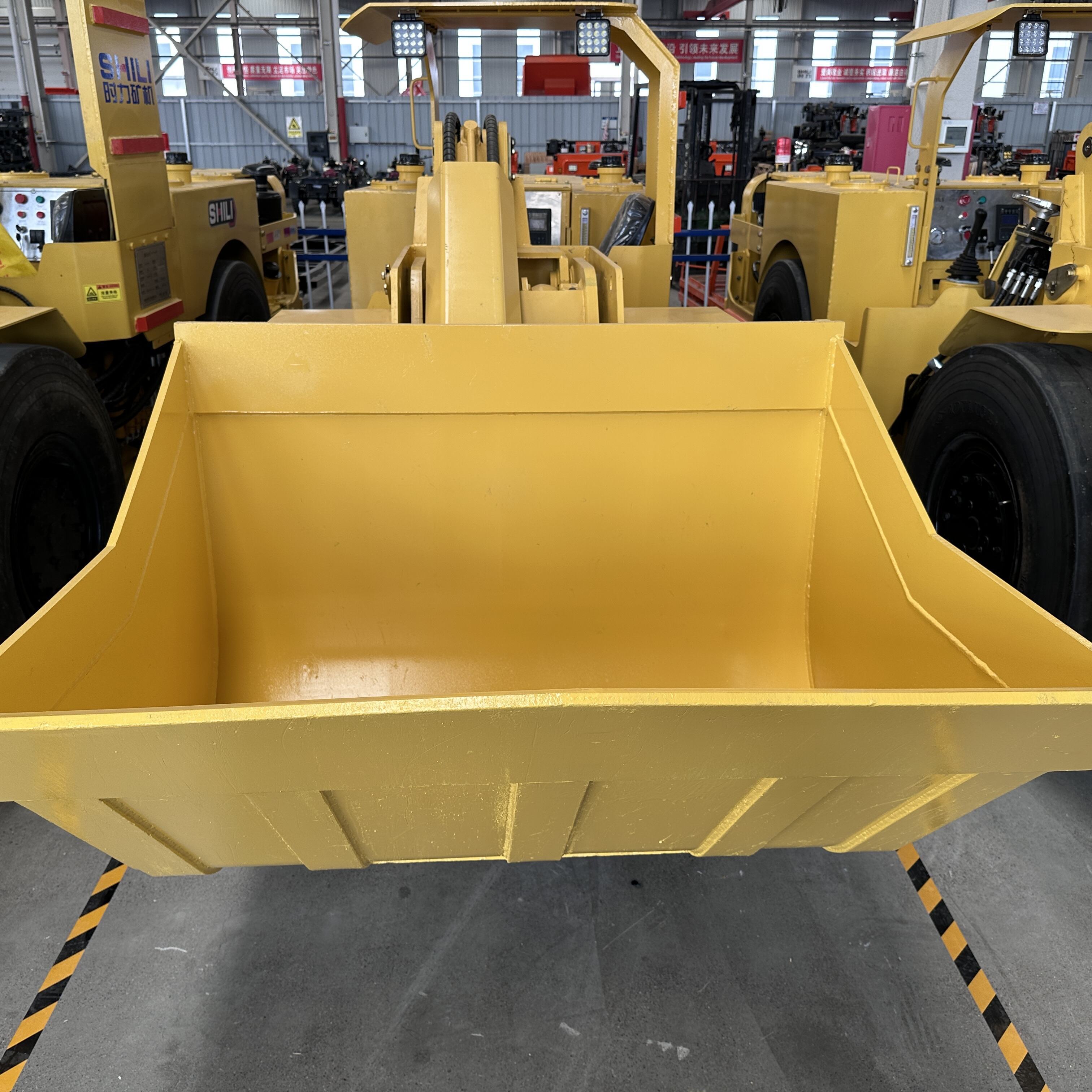

Bucket capacity (stacking) |
0.6m3 |
| 2 |
Rated load capacity |
1.2t |
| 3 |
Maximum scooping force |
42 KN |
| 4 |
Maximum traction force |
40 KN |
| 5 |
Minimum unloading distance |
735 mm |
| 6 |
Maximum unloading height |
1015mm |
| 7 |
Climbing ability (full load |
>16° |
| 8 |
Minimum turning radius |
Outer side: 3290mm, inner side: 1780mm |
| 9 |
Maximum steering Angle (left/right) |
38° |
| 10 |
Departure Corner |
16° |
| 11 |
Driving speed (in both directions) |
0-6km/h |
| 12 |
Hydraulic pump |
German Linde Hydraulics |
| 13 |
Hydraulic motor |
Saodanvers, USA |
| 14 |

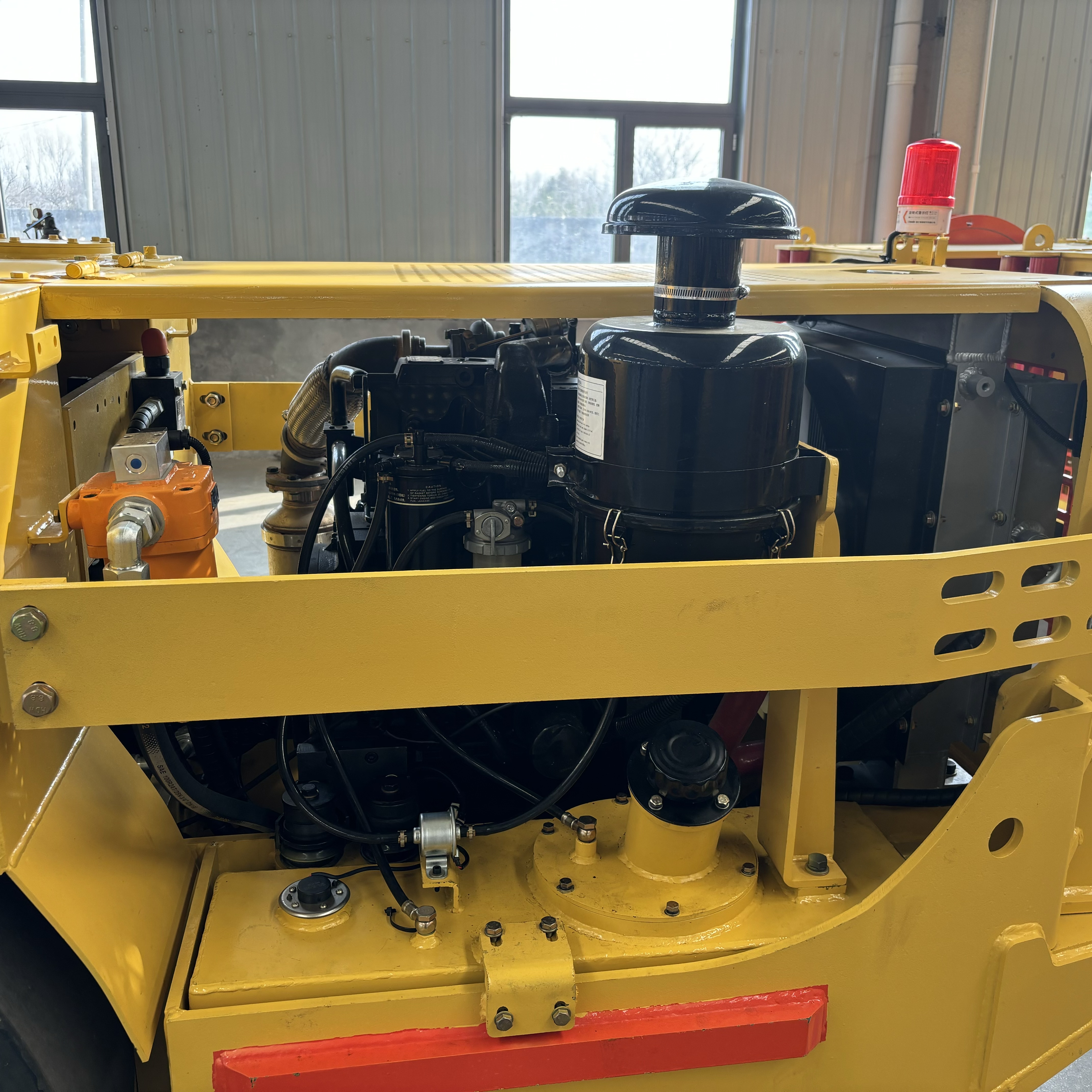

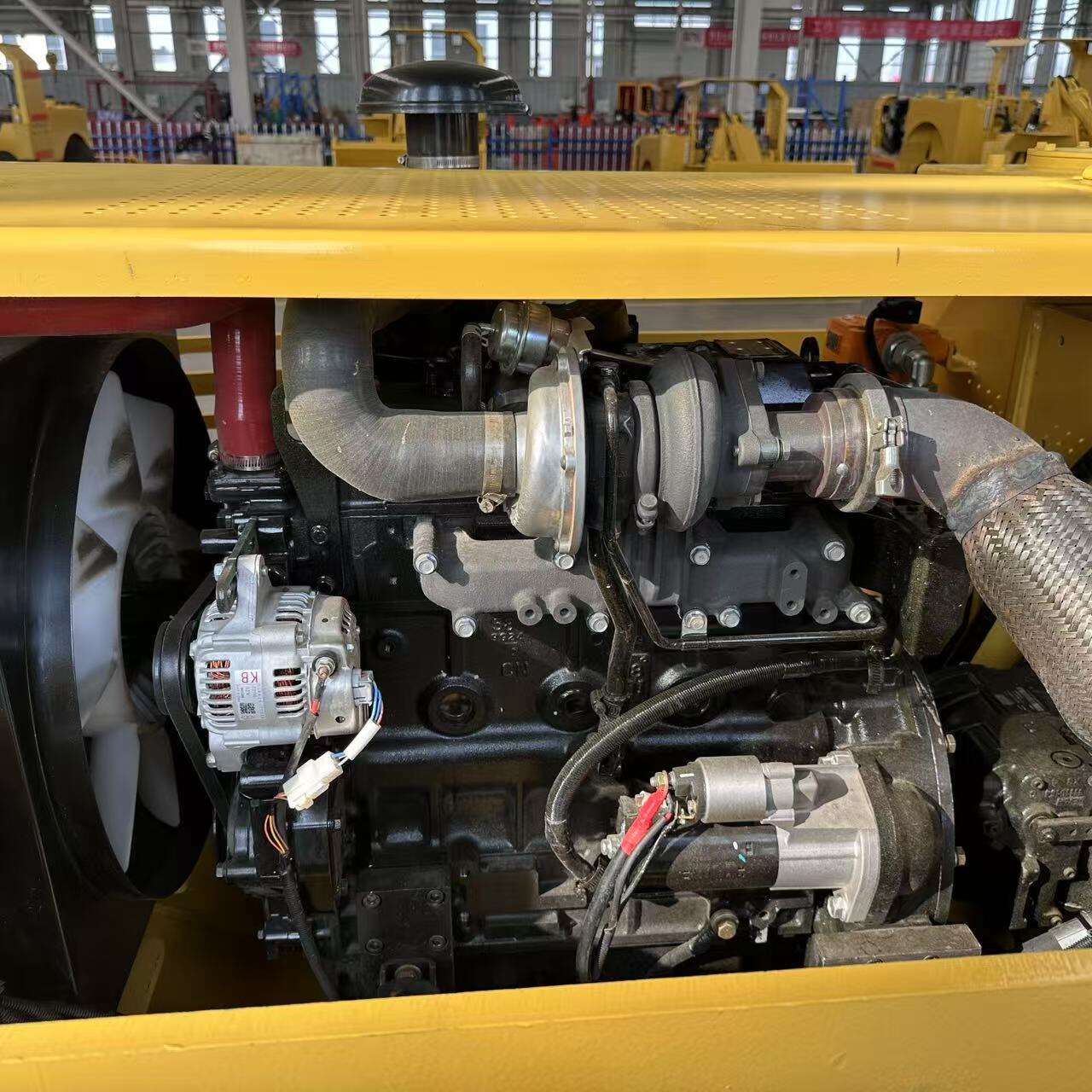

Diesel engine model/power |
Japanese YANMAR 4TNV98-S/47.4kW |
| 15 |
Braking system |
It integrates working braking and parking braking, adopts spring braking and hydraulic release brake |
| 16 |
Overall dimensions (length x width x height) |
5000x1130x1900mm |
| 17 |
Overall weight of the machine |
5t |
| WJ-1Technical parameters of internal combustion scraper |
| 序号 |
Project |
Parameter |
| 1 |
Bucket capacity |
1m3 |
| 2 |
Rated load capacity |
2t |
| 3 |
Maximum scooping force |
48 KN |
| 4 |
Maximum traction force |
58 KN |
| 5 |
Maximum unloading height |
1180mm |
| 6 |
Minimum unloading distance |
860mm |
| 7 |
The bucket is lifted to the maximum height |
3100mm |
| 8 |
Climbing ability (full load |
216 ° |
| 9 |
Minimum ground clearance |
200mm |
| 10 |
Minimum turning radius |
The outer side is 4260mm and the inner side is 2150mm |
| 11 |
Maximum steering Angle (left/right) |
38 ° |
| 12 |
Departure Corner |
16 ° |
| 13 |
Frame swing Angle |
8° C earth |
| 14 |
Wheelbase |
2200mm |
| 15 |
Driving speed (in both directions) |
0-9km/h |
| 16 |
Engine/Power |
Japanese Yanmar 4TNV98T-S/57.7kW |
| 17 |
Overall dimensions (length x width x height) |
5880x1300x2000mm |
| 18 |
Overall weight of the machine |
7.15 t |
| WJD-0.6Technical parameters of electric scraper |
| 序号 |
Project |
Parameter |
| 1 |
Bucket capacity |
0.6 m3 |
| 2 |
Rated load capacity |
1.2 t |
| 3 |
Maximum scooping force |
40KN |
| 4 |
Maximum traction force |
38 KN |
| 5 |
Minimum unloading distance |
785 mm |
| 6 |
Maximum unloading height |
1020mm |
| 7 |
Climbing ability (full load |
216 ° |
| 8 |
Minimum turning radius |
3445mm on the outside and 1900mm on the inside |
| 9 |
Maximum steering Angle (left/right) |
38 ° |
| 10 |
Departure Corner |
16 ° |
| 11 |
Driving speed (in both directions) |
0-7km/h |
| 12 |
Motor model/power |
HM2-2-225S-4/37kw |
| 13 |
Braking system |
It integrates working braking and parking braking, and adopts spring actuation and hydraulic release brake |
| 14 |
Overall dimensions (length x width x height) |
4750x1100x1840 mm |
| 15 |
Overall weight of the machine |
5.1 t |
| WJD-1Technical parameters of electric scraper |
| 序号 |
Project |
Parameter |
| 1 |
Bucket capacity |
1m3 |
| 2 |
Rated load capacity |
2t |
| 3 |
Maximum scooping force |
48KN |
| 4 |
Maximum traction force |
54KN |
| 5 |
Minimum unloading distance |
860mm |
| 6 |
Maximum unloading height |
1180mm |
| 7 |
Climbing ability (full load |
216 ° |
| 8 |
Minimum turning radius |
Outer side: 4260mm, inner side: 2150mm |
| 9 |
Maximum steering Angle (left/right) |
38 ° |
| 10 |
Departure Corner |
16 ° |
| 11 |
Driving speed (in both directions) |
0-8km/h |
| 12 |
Motor model/power |
HM2-2-225S-4/45kw |
| 13 |
Braking system |
It integrates working braking and parking braking, adopts spring braking and hydraulic release brake |
| 14 |
Overall dimensions (length x width x height) |
5880x1300x2000mm |
| 15 |
Overall weight of the machine |
7.15 t |
×
