| Project |
Unit |
WCL3Y |
WCL5Y |
| Whole machine |
Rated load capacity |
kg |
3000 |
5000 |
| Overall dimensions (length X width X height) |
mm |
( 4260 x 1330 X 1940) 20 |
(4560 X1330 X 1940) 20 |
| Preparation quality |
kg |
3450 |
3850 |
| Ground specific voltage |
MPa |
0.019 ( 0. 036满载) |
0.022(0.051满载) |
| Noise |
dB (A) |
90 |
90 |
| Maximum traction force |
kN |
40 |
40 |
| Plate height |
mm |
620 ±20 |
620加减20 |
| Container volume (length X width X height) |
mm |
(1900 X1200 x 500)±20 |
(2200 X1200 x 500)±20 |

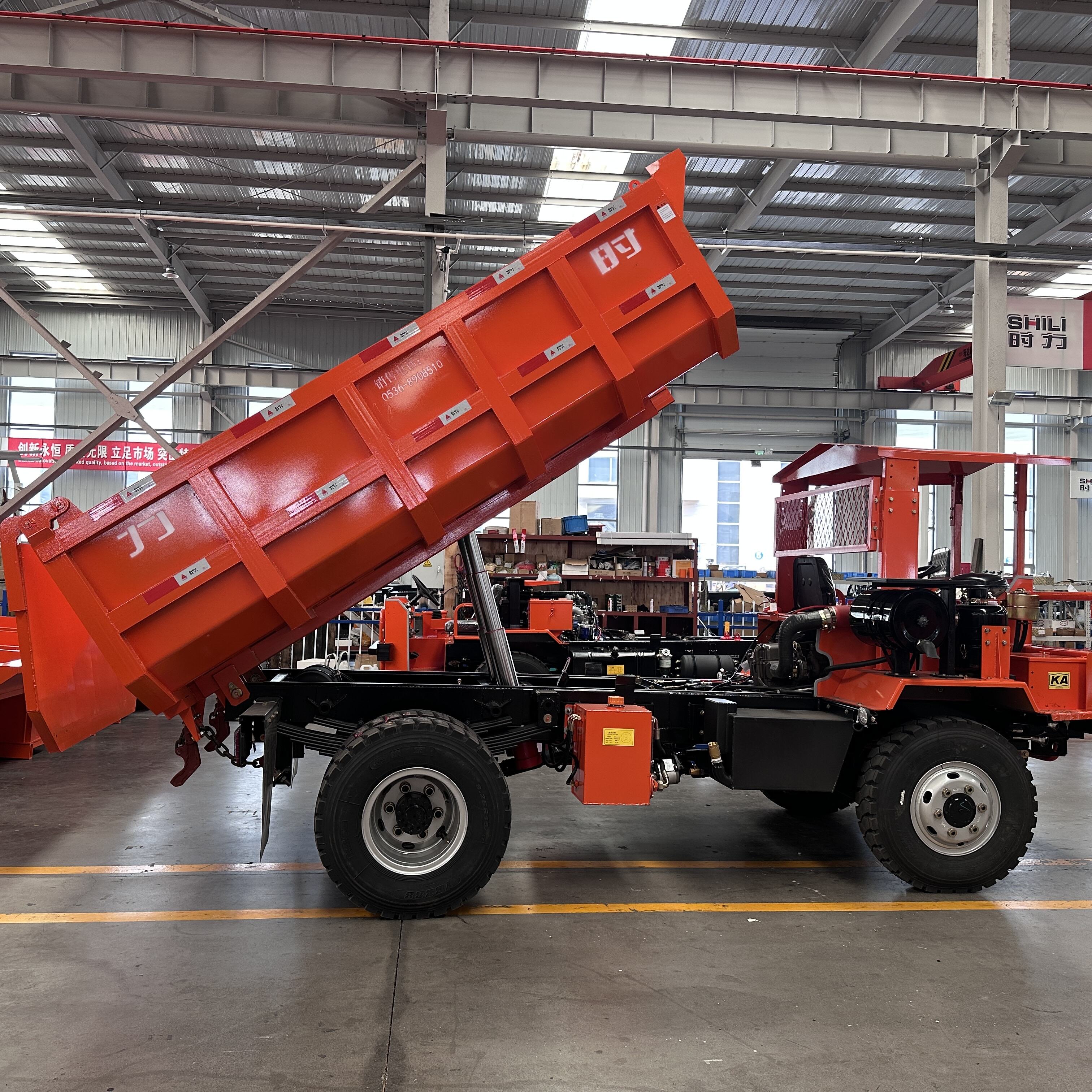

| The maximum lift Angle of the cargo box |
(°) |
39±2 |
39±2 |
| Lift/drop time |
s |
15/20 |
15/20 |
| Maximum lifting height during self-unloading |
mm |
2730±30 |
2730±30 |
| Ground clearance |
mm |
220 |
220 |
| Walking mechanism |
Walking speed |
m/min |
Low speed :40; High speed :70 |
Low speed :40; High speed :70 |
| Climbing ability |
(°) |
±16 |
±16 |
| Track plate width |
mm |
400 |
400 |
| Working pressure of the hydraulic system |
MPa |
22 |
22 |
| Effective volume of the fuel tank |
L |
60 |
60 |
| Minimum passing capacity radius |
mm |
2720 |
2720 |
| Explosion-proof diesel engine |
Model |
- |
HN495DZLDFB(A) |
HN495DZLDFB(A) |
| Power |
kW |
45 |
45 |
×
